Complete Disassembly and Detail Cleaning of the 1911.



Today we will be disassembling the most popular handgun in America. The classic 1911. This is a Colt Commander model with a few modifications. This guide is for a Colt model 70 style pistol, some other models, such as Colt model 80s and Kimbers that have an additional firing pin safety that is not covered in this guide at this time. There are a wide variety of manufacturers out there for these pistols, and there are a wide range of variations, but all 1911s will follow this basic design.

Learning to completely disassemble your gun is the best way to learn how it functions, allows the gun to be thoroughly cleaned, and you will be able to see any broken or worn parts, or other potential problems.


These are the tools we will use. It doesn't take much to take apart a 1911: a screwdriver, a drift punch, a hammer and a bushing wrench should be enough to get it done.





First you need to ensure that the gun is unloaded.


You will need to press in the recoil spring plunger and turn the barrel bushing clockwise until the plunger is released.


Be sure to control the plunger. It is under heavy tension and will happily launch itself across the room if you aren't careful.


Push the slide back until the slide stop lines up with the small notch in the slide rail. Remove the slide stop.


Push the slide forward to separate it from the frame.

SLIDE DISASSEMBLY


The slide has very few moving parts and disassembly is fairly simple.


 The recoil spring assembly should just lift out. If your gun has a guide rod, it may need to be unscrewed first.


Remove the barrel bushing. Turn it counter-clockwise until the tab lines up.


Put the barrel link down and slide the barrel forward, out of the slide. Do not remove the barrel link unless it is necessary. The link pin is pressure fit and is very difficult to remove and replace.

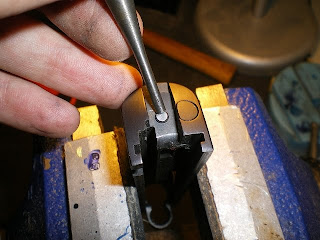

Press the firing pin in to release the firing pin stop. Remove the stop and the firing pin. Be careful to control the firing pin, as it is under tension and may decide to aim itself at your eye. If you are working with a series 80 gun, there will be a hole on the bottom of the slide and a plunger that needs to be pressed to remove the firing pin.


Remove the extractor.


The slide should be fully disassembled. Do not remove the sights unless absolutely necessary.

FRAME DISASSEMBLY


First, carefully lower the hammer. Do not allow the hammer to fall freely, as it may crack or otherwise damage the frame.


Remove the grip panels. Be sure that you use the correct size screwdriver. A loose fit can result in marred screw heads.


Use a punch to carefully drift out the mainspring housing pin.


Push the Mainspring housing assembly down, but do not remove it from the frame. It holds the sear spring in place.


Cock the hammer and remove the thumb safety. This will also release the grip safety.


Remove the mainspring housing and the sear spring.


To disassemble the mainspring housing assembly, compress the mainspring and remove the small pin holding it in place. Try to avoid launching any tools or parts.


Remove the hammer.

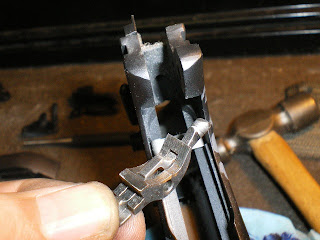

...and the sear/disconnector.


Remove the slide stop plunger. Note the kink in the spring. That is there to prevent the plunger from launching when the gun is disassembled.


Remove the magazine catch. The part with the screw head is not a screw. It is a latch. Press the magazine release and turn it clockwise until it stops. This should allow you to remove the magazine catch.


Remove the trigger.


The frame should now be fully disassembled.

CLEANING


Use a general purpose gun cleaner and a rag to clean all of the gun's parts. I find that old t-shirts make excellent gun rags.

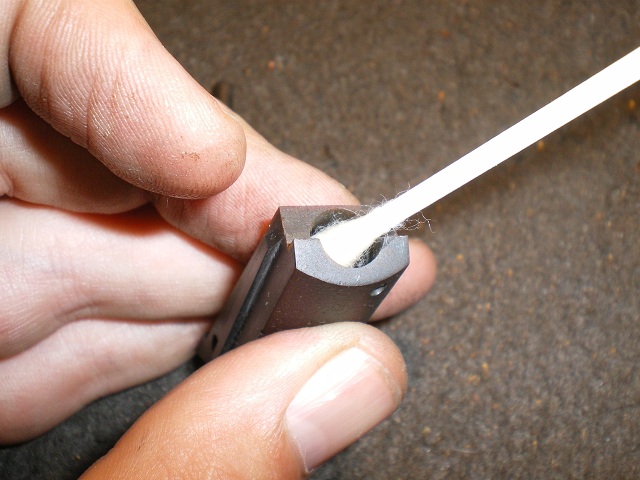

Use q-tips and a toothbrush to reach those hard-to-reach parts. Try to clean every part as thoroughly as possible, and wipe off all excess solvent.


Run a patch soaked with copper and powder solvent through the bore, then run your bore brush through it several times.


Run dry patches through the barrel until they come out clean.


Repeat the process with Hoppes No. 9.


Wipe down the slide, the frame, the exterior of the barrel and any exterior parts with a very fine coat of oil. This serves to protect the metal. Do not oil any internal parts. Excess oil will collect dust and powder residue.


Apply a thin coat of grease to the rails.

REASSEMBLY

Reassemble the gun in this order:

Frame:
slide stop plunger
trigger
magazine catch
the sear and disconnector
hammer
sear spring (use the mainspring housing to hold the spring in place, but do not fully seat it yet)
grip safety
thumb safety
seat the mainspring housing and insert the drift pin
grips

Slide:
extractor
firing pin
firing pin stop
barrel
barrel bushing
recoil spring and guide rod

Attach the slide to the frame and use the slide stop to lock it in place. Replace the recoil spring plunger and turn the barrel bushing to lock it in place. Last, but not least, check your workspace for any forgotten parts.

Check the safeties to make sure they all function as they should and you should be done.


Congratulations. Your pistol is probably the cleanest it has been since it was brand new.

If you have any questions or problems, feel free to ask me in the comments.
